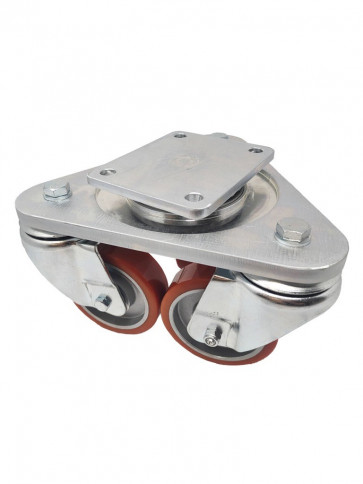

Double swivel plate with no.3 Ø100 polyurethane wheels
100mm polyurethane wheels with aluminum hub and ball bearings. Heavy-duty zinc-plated steel plate support on slewing ring.
User advise:
- Wheels for theaters and scenography
- Wheels for handling industrial machinery and heavy loads
- Compact wheel with large load capacity for maximum freedom of movement in all directions.
User advise:
- Wheels for theaters and scenography
- Wheels for handling industrial machinery and heavy loads
- Compact wheel with large load capacity for maximum freedom of movement in all directions.
SKU:
KW3THE100P
Availability: In stock
€176.90
Excl. Tax:
€145.00
Technical data
Additional Info
| Tread | Polyurethane tire |
|---|---|
| Finish | Zinc plated |
| Swivel type | Plate |
| Scrolling | Ball bearing |
| Wheels category | Swivel bracked |
| Weigth (kg) | 7.5000 |
| Total height (mm) | 162 |
| Bolt hole diameter (mm) | 12 |
| Wheel diameter (mm) | 100 |
| Top plate size (mm) | 135X110 |
| Bolt hole spacing (mm) | 105X80 |
| Wheel width (mm) | 30 |
| Load capacity (kg) | 500 |
